Threshold Plates
Approved Document 'M' states, "reasonable provision is to be made for people to gain access to and use the building and its facilities" and is the most contemporary design guidance published. These regulations affect all new buildings and extensions to existing buildings.
Under Approved Document 'M' routes from the exterior across the threshold should provide weather protection and not present a barrier for wheelchair users or a trip hazard for other users.
A level threshold is preferred, especially for doors in frequent use. External and internal door thresholds should be no higher than 15mm and incorporate chamfered or pencil rounded corners. Vertical surfaces should be no greater than 5mm.
Doorsets designated as fire and smoke resisting are subjected to the additional burden of smoke seal resistance, and crucially 'resistance' to a mechanical door closing device.
Raven door sealing solutions not only make access easier but also offer minimum resistance for effective door operation. Where thresholds or door bottom seals are particularly suitable for use in an inclusive environment, products are denoted with a wheelchair symbol.
Related links: UK Planning Portal - Approved Document M
A low profile threshold plate | Conforms to 'disabled access' requirements for Building Control (Approved Document M) | Used in Conjunction with Raven door bottom seals | Size 1000mm.
A low profile threshold plate | Conforms to 'disabled access' requirements for Building Control (Approved Document M) | Used in Conjunction with Raven door bottom seals | Size 2000mm.

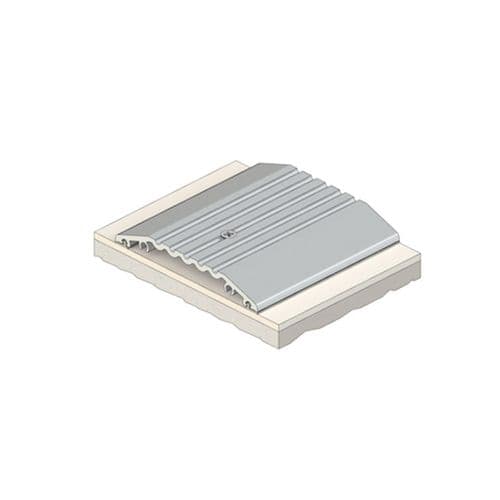

Low profile, ribbed threshold plates | For improved wheelchair access | DDA & Approved Document M compliant | Made by Raven RP19.
Low profile, ribbed threshold plates | For improved wheelchair access | DDA & Approved Document M compliant | Made by Raven RP28 | Size 1000mm.
Low profile, ribbed threshold plates | For improved wheelchair access | DDA & Approved Document M compliant | Made by Raven RP28 | Size 2000mm.
Low profile, ribbed threshold plates | For improved wheelchair access | DDA & Approved Document M compliant | Made by Raven RP29.

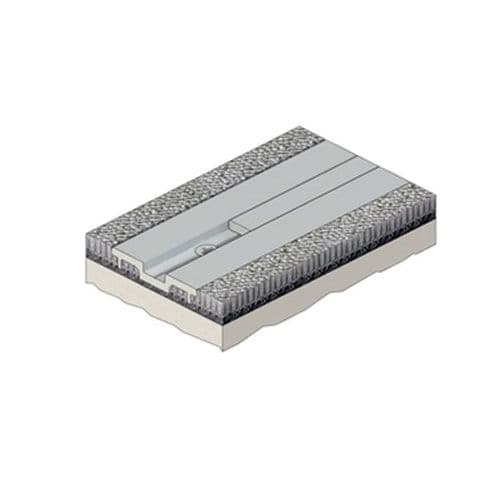

Threshold plate for the carpeted sill of interior doors | Concealed fixings with self adhesive aluminium insert | DDA and Fire Regs. compliant | Size 1000mm
Threshold plate for the carpeted sill of interior doors | Concealed fixings with self adhesive aluminium insert | DDA and Fire Regs. compliant | Size 2000mm
Threshold Plate to aid wheelchair access and also suitable for a standard door sill | 1000mm stock lengths | Conforms to UK/EU Approved Document M
Threshold Plate to aid wheelchair access and also suitable for a standard door sill | 2000mm stock lengths | Conforms to UK/EU Approved Document M
Threshold Plate to aid wheelchair access and also suitable for a standard door sill | 2250mm stock lengths | Conforms to UK/EU Approved Document M
Low profile threshold plate to improve wheelchair access | Heavy Duty | Approved Document M compliant | 1000 lengths.
Low profile threshold plate to improve wheelchair access | Heavy Duty | Approved Document M compliant | 2000 lengths.
A low profile threshold plate | Complies with Approved Document M. Fire Rated | Best matched with a multi-purpose Raven Door Bottom Seal | 1000mm stock lengths.
A low profile threshold plate | Complies with Approved Document M. Fire Rated | Best matched with a multi-purpose Raven Door Bottom Seal | 2000mm stock lengths.

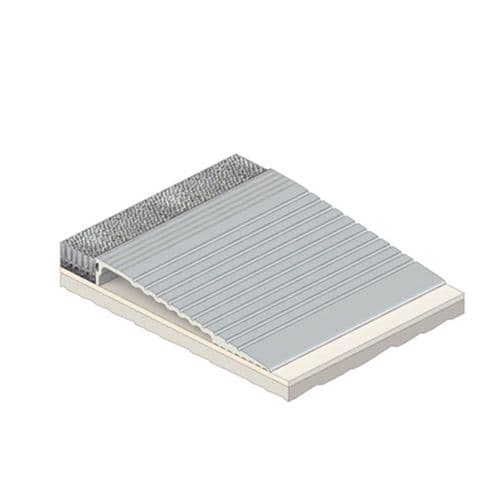

Heavy Duty threshold plates | Two plates can be positioned back-to-back to make a two way ramp | Supplied in 1m lengths.
A low profile threshold plate that meets Approved Document B (fire) and M (mobility) requirements | 1000mm stock lengths
A low profile threshold plate that meets Approved Document B (fire) and M (mobility) requirements | 2000mm stock lengths

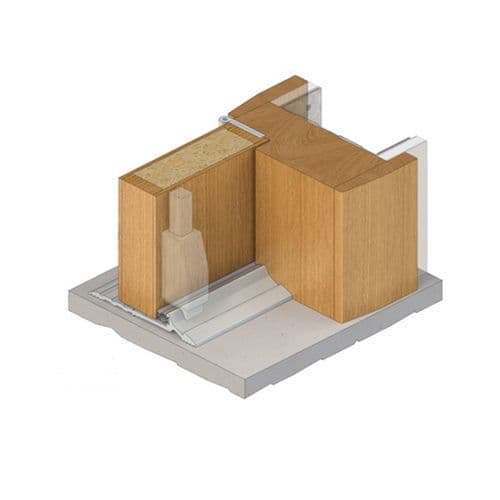

For standard doors and also for panic bolt operating doors | The RP117Si is a weather proof threshold plate seal.
For standard doors and also for panic bolt operating doors | The RP117Si is a weather proof threshold plate seal.
A threshold plate seal RP97Si | Particularly suited for outward opening broad butt hinged plant room and emergency exit doors.
