Steel Air Transfer Face Plates
Air Transfer Face Plates

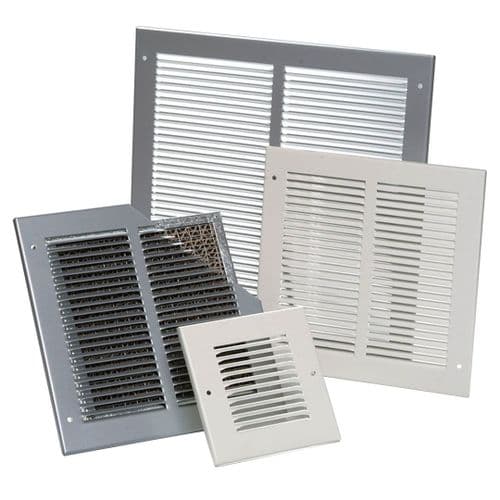

The Louvered Steel Air Transfer Plates made from steel construction material, Standard finish Silver (RAL 9006). White finish or RAL colours available on request. For internal use on Door or wall mounting. Browse the huge range of sizes.
Mild Steel Louvered Grilles designed to satisfy all types of air transfer application in offices, shops, schools, hospitals and many other commercial projects. Manufactured using modern press machinery and production techniques robustly fabricated from 2Oswg mild steel and comprises of horizontal louvres set on an 8.5mm pitch with a 30% downward deflection.
Suitability
Suitable for internal, surface mounting on doors and walls. The steel construction ensures that the unit is satisfactory not only for Intumescent Fire Grilles but can also be used in standard air transfer applications, utilised with the wide flange border providing adequate clearance for fixing to the surrounding structure. Slimline and unobtrusive the unit offers a free area around 66% for economical selection and is readily available in a wide variety of normal and reverse of list sizes. Standard finishes are Silver (RAL 9006). White finish or RAL colours available on request.
Dimensional Data
For outside dimensions +41mm to the louver sizes seen in the table below e.g. 305 x 305 louver measurement would have external dimensions of 346 x 346mm
|
Size
in mm. |
100.00
|
150.00
|
200.00
|
250.00
|
300.00
|
350.00
|
400.00
|
450.00
|
500.00
|
600.00
|
|
100.00
|
102x102
|
152x102
|
203x102
|
254x102
|
305x102
|
356x102
|
406x102
|
457x102
|
508x102
|
610x102
|
|
150.00
|
152x152
|
203x152
|
254x152
|
305x152
|
356x152
|
406x152
|
457x152
|
508x152
|
610x152
|
|
|
200.00
|
203x203
|
254x203
|
305x203
|
356x203
|
406x203
|
457x203
|
508x203
|
610x203
|
||
|
250.00
|
254x254
|
305x254
|
356x254
|
406x254
|
457x254
|
508x254
|
610x254
|
|||
|
300.00
|
305x305
|
356x305
|
406x305
|
457x305
|
508x305
|
610x305
|
||||
|
350.00
|
356x356
|
406x356
|
457x356
|
508x356
|
610x356
|
|||||
|
400.00
|
406x406
|
457x406
|
508x406
|
610x406
|
||||||
|
450.00
|
457x457
|
508x457
|
610x457
|
|||||||
|
500.00
|
508x508
|
610x508
|
||||||||
|
600.00
|
610x610
|
