Socket Box Protection
Socketbox / Wallbox Inserts & Putty Pads
Block a Fire & Smoke Pathway.
A recessed switch or socket presents an easy path for fire and smoke to spread from room to room.The Electrical Safety Council Best Practice Guide recommends fire stopping of socket box openings. Building Regulations Approved Document B states that any penetrated fire rated wall should be reinstated to its original fire rating.
Reduce Noise Transmission.
Wall penetrations allow sound to travel, reducing acoustic performance - which should be reinstated as per Building Regulations Approved Document E.
Improve Energy Efficiency.
Wall penetrations allow heat loss and un-insulated recessed wall boxes offer a path for air leakage. When there are a high number of units in each building this can amount to a high total air leakage. Many building are now specifically tested to meet air leakage criteria before being "signed off" - this is covered in Building Regulations Approved Document L.

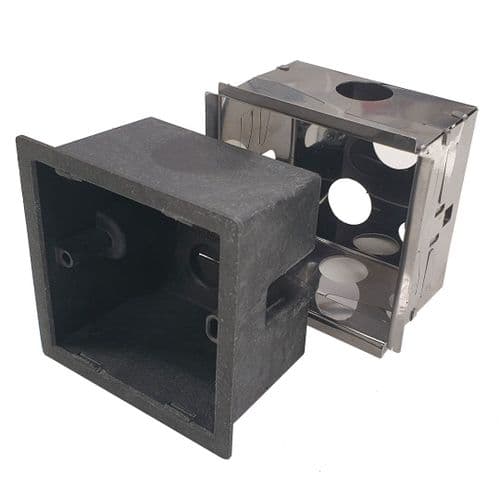

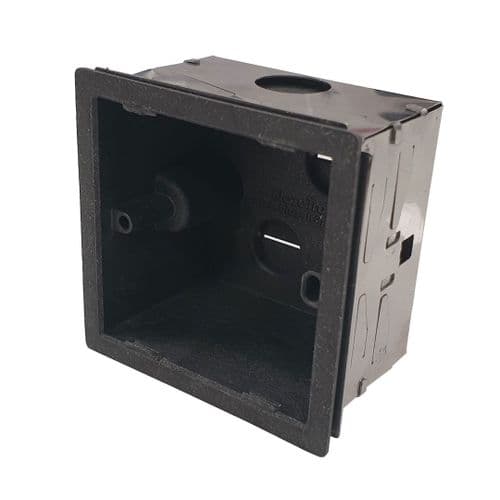

Electrical back box available for single electrical sockets | Fire Resistant Electrical Back Box - ROBS Intumescent System | Tested in accordance with BS EN 1366-3: 2021 and Acoustic tested to 64dB | Free of organic solvents, Halogen free and Patented technology

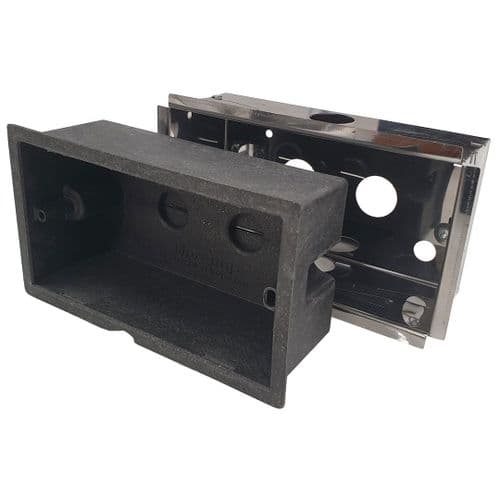

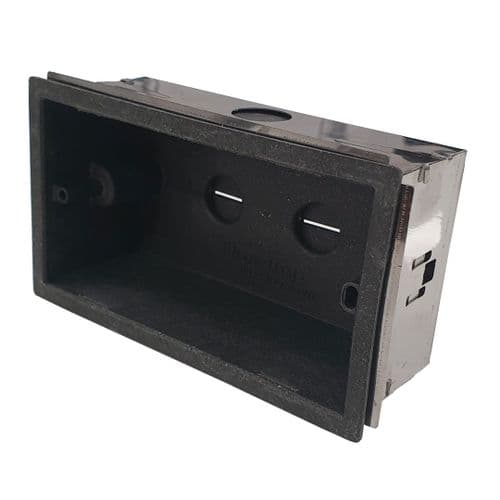

Electrical back box available for double electrical sockets | Fire Resistant Electrical Back Box - ROBS Intumescent System | Tested in accordance with BS EN 1366-3: 2021 and Acoustic tested to 64dB | Free of organic solvents, Halogen free and Patented technology
Non-Setting, fire protection, putty pads | Supplied in a cross shape | Up to 90 minutes fire resistance | Easy fit | Fire and sound rated.
Non-Setting, fire protection, putty pads | Supplied in a cross shape | Up to 90 minutes fire resistance | Easy fit | Fire and sound rated .
Non-Setting, fire protection, putty pads | Supplied in a cross shape | Up to 90 minutes fire resistance | Easy fit | Fire and sound rated .
Non-Setting, fire protection, putty pads | Supplied in a cross shape | Up to 90 minutes fire resistance | Easy fit | Fire and sound rated .
Designed to be fitted around service penetrations around very small gaps | Easy to apply fire rated putty | Can be reshaped | Excellent sound insulation
Easy to install putty pad alternative | Pre-formed inserts to fit common metal and plastic socket box types | Single Size Socket Box Insert - Standard depth 35mm
Easy to install putty pad alternative | Pre-formed inserts to fit common metal and plastic socket box types | Double Size Socket Box Insert - Standard depth 35mm
Easy to install putty pad alternative | Pre-formed inserts to fit common metal and plastic socket box types | Single Size Socket Box Insert - Extra depth 47mm
Easy to install putty pad alternative | Pre-formed inserts to fit common metal and plastic socket box types | Double Size Socket Box Insert - Extra depth 47mm

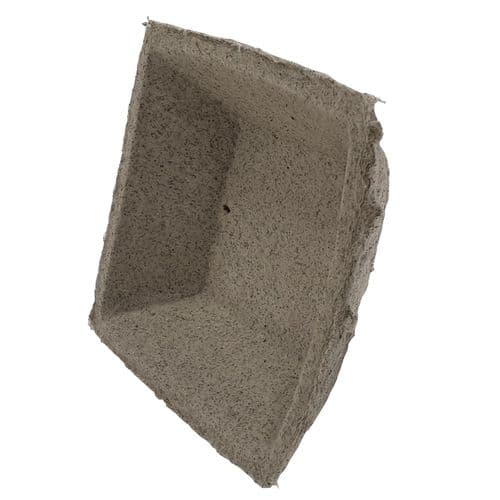

Single socket box cover | Easy to install putty pad alternative | Pre-formed covers to fit most electrical switch boxes | Internal sizes: W80 x H80 x D40mm

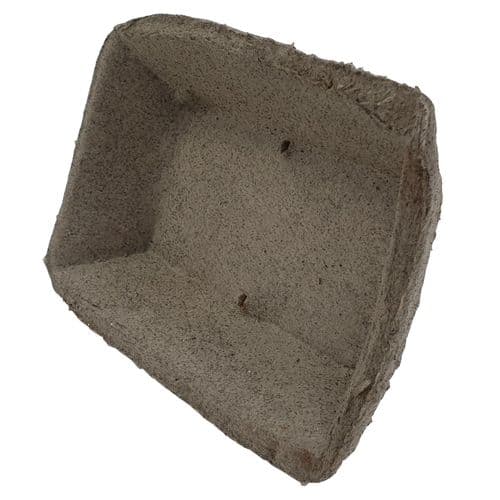

Double socket box cover | Easy to install putty pad alternative | Pre-formed covers to fit most electrical switch boxes | Internal sizes: W150 x H80 x D40mm
