Self Adhesive Seal - RP75 (1000mm)

Key Points:

• A nylon brush strip seal
• Symbol Guide

Description:

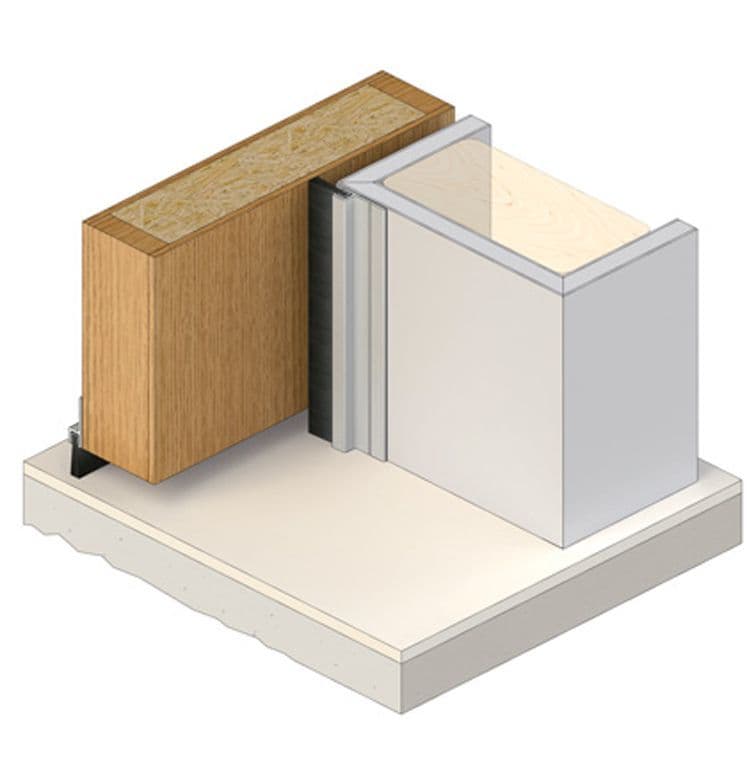

A nylon brush strip seal that is ideal for sliding or double acting doors. Can also be used for the stiles of tilt-up doors. Used in conjunction with Raven threshold plates

Specification:

• Location: Frames or bottoms of single, double, sliding and double acting doors as well as stiles of tilt up doors.
• Min/Max Gap: Up to 19mm (user determined).
• Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
• Seal: Black fine, dense, UV stabilised nylon filaments.
• Finish: Aluminium anodised 15 microns. Satin Clear (Silver)
• Sizes: Available in 1000mm lengths.
