Raven RP78si Acoustic & Smoke Perimeter Door Seal (Double Doorset 3 x 2.1m)

Key Points:

• A medium temperature smoke door frame seal
• Tested to AS 1530.4, AS/NZS 1905
• Quick and easy to install
• Single door set or Double door sets available
• Symbol Guide

Description:

A medium temperature smoke door frame seal that has been tested to AS 1530.4, AS/NZS 1905. 1. Similar to BS 476 part 20 and 22.

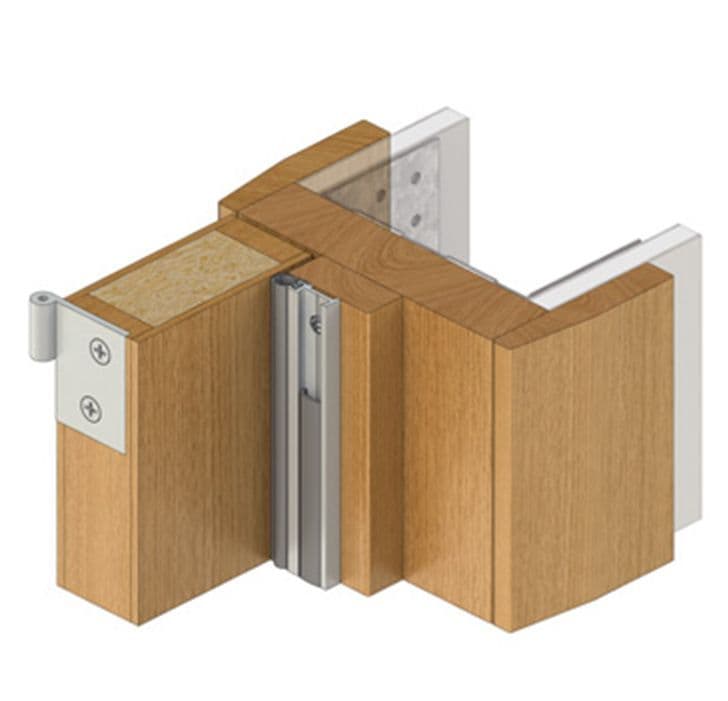

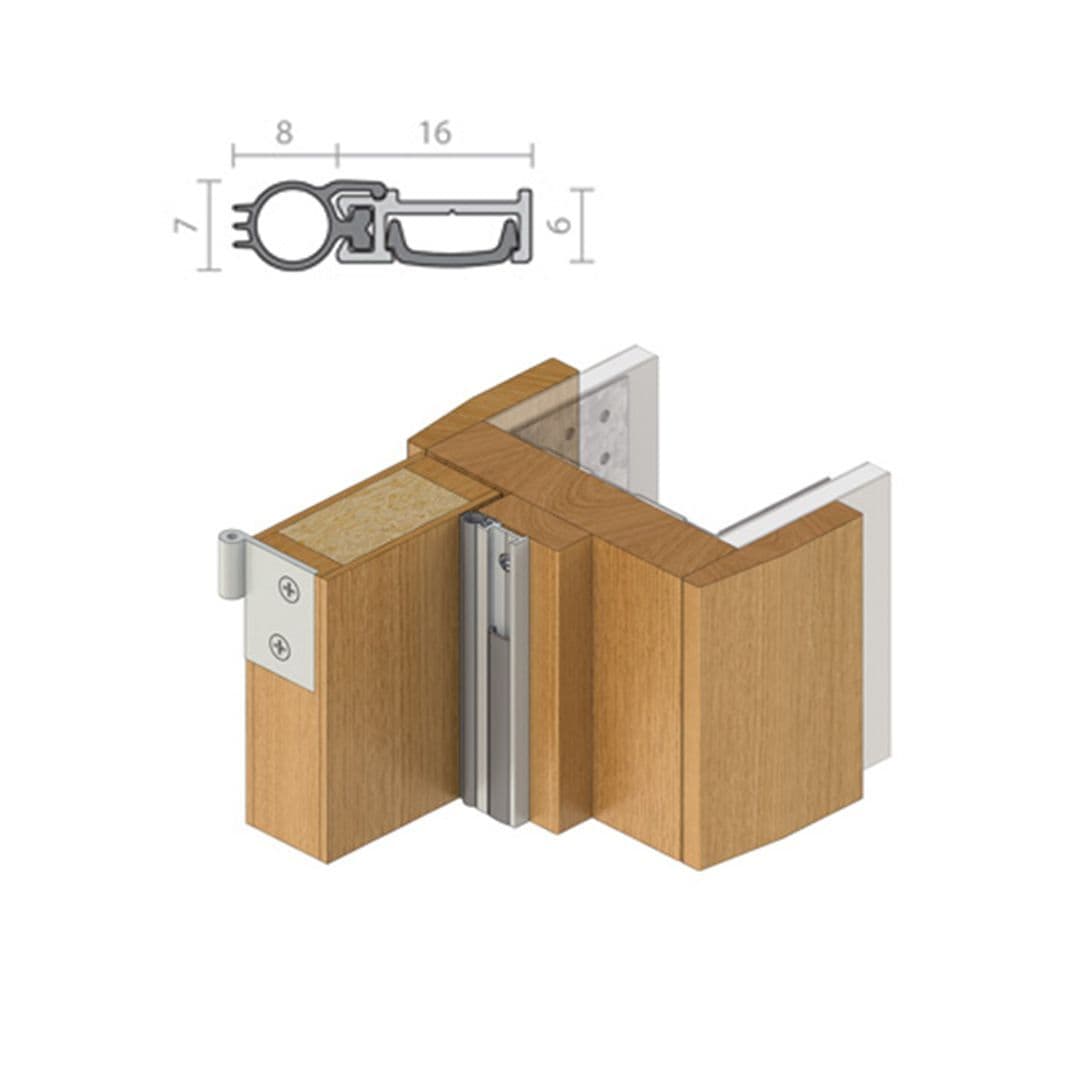

It is an acoustically designed smoke seal for installation on door stops and it can be mitred or butt jointed.

Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings. It is quick and easy to install around the jamb and head and can be fitted without removing the door.

Specification:

• Location: Head and jambs on single or double butt hinged doors.
• Min/Max Gap: 0mm to 6mm
• Fixing Method: Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.
• Seal Material: Silicon Rubber (SE) (charcoal).
• Replacement Seal: RP394Si
• Used in conjunction: RP8Si, RP6Si, RP38Si, RP99Si and RP70Si.
• Double Doorset: 3 x 2.1m

Installation:

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com

Maintenance:

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency:

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

For further information on installation requirements please refer to the door manufacturer data to ensure the compatibility of this product, if in doubt please contact the technical team on: Tel: +(0)1329 841416 or email sales@stormflame.com
