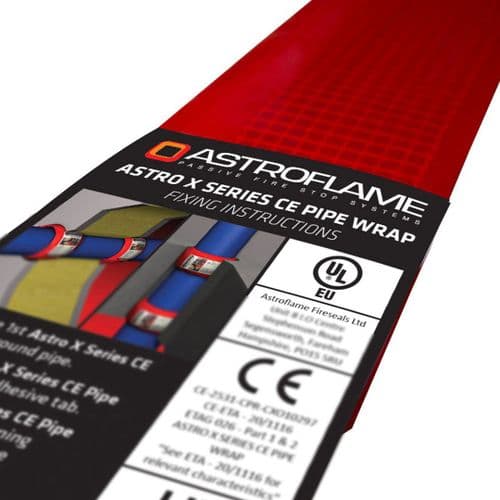

Pipe Wrap - CE/UKCA Marked
Intumescent CE/UKCA Marked Pipe Wrap
Astroflame's CE Pipe Wrap are designed and tested to seal service penetration apertures containing plastic pipes using thermoplastic composites based on graphite intumescent technology. Developed to provide a high volume expansion and pressure seal during a fire. The CE Pipe Wrap offers EI120 tested to EN1366-3, the maximum diameter being 200mm, the ultra thin design of Astro X Series CE Pipe Wrap ensuring that they can be installed in to the tightest of locations.
Astroflame's CE Pipe Wrap can be installed in flexible wall, rigid wall, rigid floor constructions and with Batt systems. They are compatible with polypropylene(PP), polyethylene (PE) and polyvinylchloride (PVC) pipes. The CE Pipe Wrap is used around combustible pipes to form a penetration seal used to reinstate the fire resistance performance of wall and floor constructions, where they have been provided with apertures for the penetration of combustible pipe services. The wraps include an intumescent component incorporated into a lightweight PVC carrier bag to close any gaps and joints and provide a closure of combustible pipes when heated and to prevent the passage of fire.
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 32mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 40mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 55mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 63mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 75mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 82mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 90mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 110mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 125mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 140mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 160mm
Astro X Series CE Pipe Wrap is used around combustible pipes | For internal use | CE, UKCA Marked & UL-EU Accreditation | Size: 200mm
