Key Points:
- Intumescent sheet material for FD30 and FD60
- Flexible intumescent ironmongery material
- Multi-directional expansion and pressure provides structure and integrity when filling rebates and voids.
- Unaffected by moisture, humidity, atmospheric pollution and other common industrial and household chemical substances.
- Only 0.8mm thick - so minimal rebating required.
- Successfully tested for 30 & 60 minute applications.
- Very flexible and clean to work with.
- Will bend without cracking.
- Test in accordance with BS 476 Part 22 : 1987 and BS EN 1634-1.
- 3rd party accredited IFC 1745 for hardware protection products.
- Available with full traceability print.
Description:
A flexible Intumescent sheet material for Fire Doors (FD30 and FD60). Stormflame recommends this Intumescent sheet material when working and installing fire doors. Protect your area with the Intumescent sheet material and slow the rate of fire/smoke spreading.

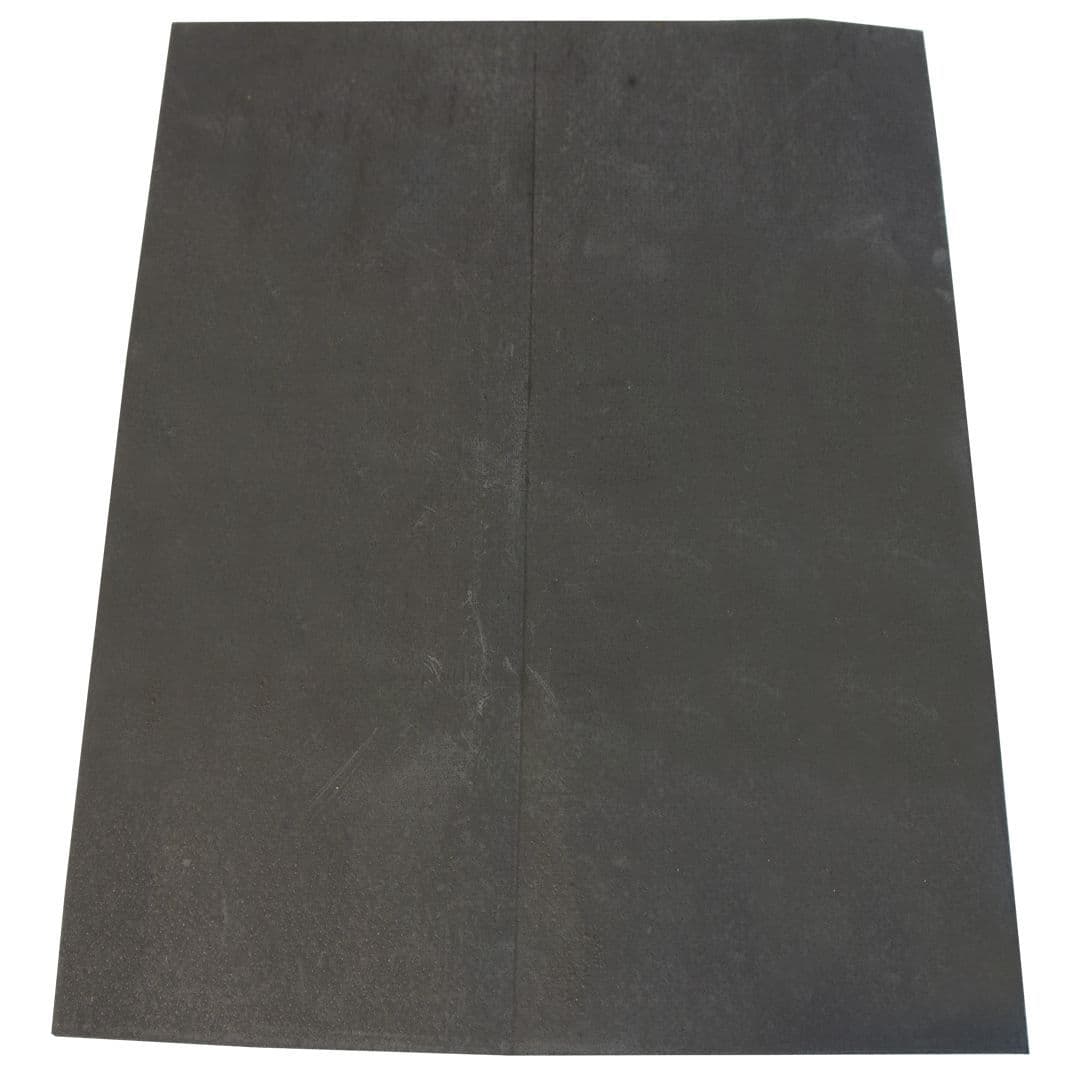

The Intumescent Ironmongery Sheet Material For Fire Doors (300x200) are a graphite-based intumescent material that offers high levels of expansion and insulation, preventing heat transfer on rebated hardware. All ironmongery installed on a fire door must be fitted without compromising the integrity of the complete fire door assembly. This is of particular importance where ironmongery is rebated into the doorset such as hinges, locks, latches.
As the material reaches its activation temperature of 180°, the intercalated graphite particles expand many times their original volume. These Intumescent Ironmongery Sheet Material For Fire Doors (300x200) are an ultra thin and flexible high performance graphite based intumescent sheet. At 0.8mm the sheet material offers high levels of expansion and insulation preventing heat transfer on ironmongery rebated into timber doorsets.
Flexible and fully customisable the sheet material are suitable for use on all types of fire rated hardware. For instance Door Hinges, Door Locks and Latches, Flush Bolts and Door Controls. Please check that your hardware test evidence is compatible with these Intumescent Ironmongery Sheet Material For Fire Doors (300x200) prior to installation.
Specification:
- Standard sizes: 300 X 200mm
- Packaged in poly bagged
- Only 0.8mm thick
Installation:
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com
Maintenance:
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.
Competency:
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes:
Each fire door and hardware component will have its own test evidence. It is the responsibility of the purchaser to ensure that the product is fully compliant with the relevant test evidence. For further information contact the technical team on Tel: +(0)1329 841416 or email sales@stormflame.com
Download and review any of the following information:
Certification/Fire Test Reports:
'IFC' are 'International Fire Consultant Certificates'
