- Intumescent hinge pad for FD30 and FD60
- Flexible intumescent ironmongery material
- Round or square hinge pad material
- Self adhesive
- Various packs available
- Test in accordance with BS 476 Part 20 & 22 : 1987
- up to 60 minutes fire rating

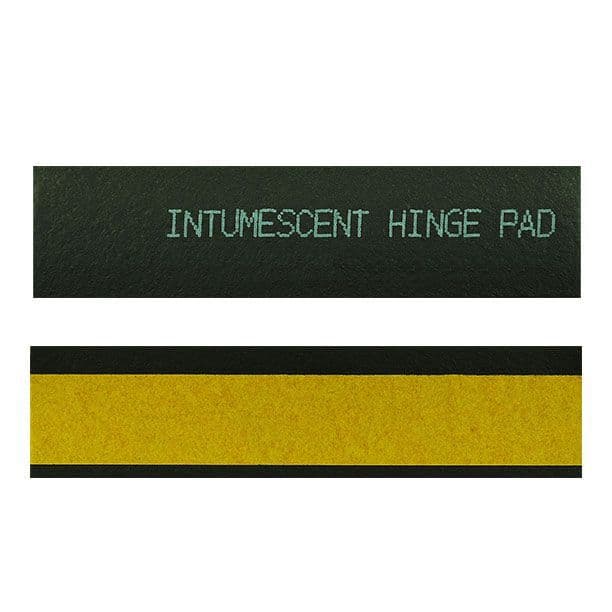

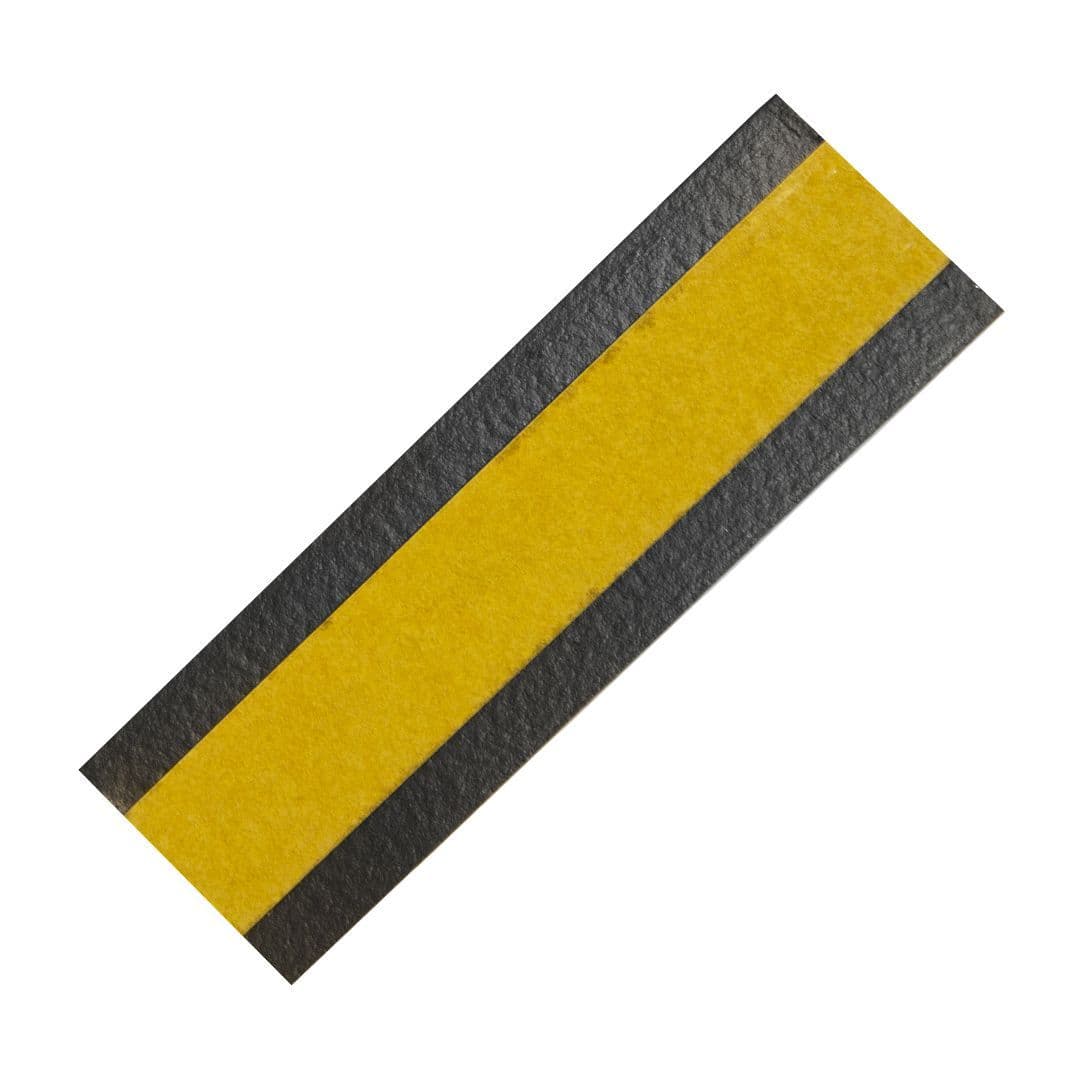

A flexible intumescent self adhesive hinge pad for Fire Doors (FD30 and FD60). Stormflame recommends this Hinge pad when working and installing fire door hinges. Protect your area with the hinge pad and slow the rate of fire/smoke spreading. The flexible intumescent self adhesive hinge pad has been fire tested in accordance with BS 476 Part 20 & 22 : 1987 and has up to a 60 minute fire rating.
- Standard size 30x100mm

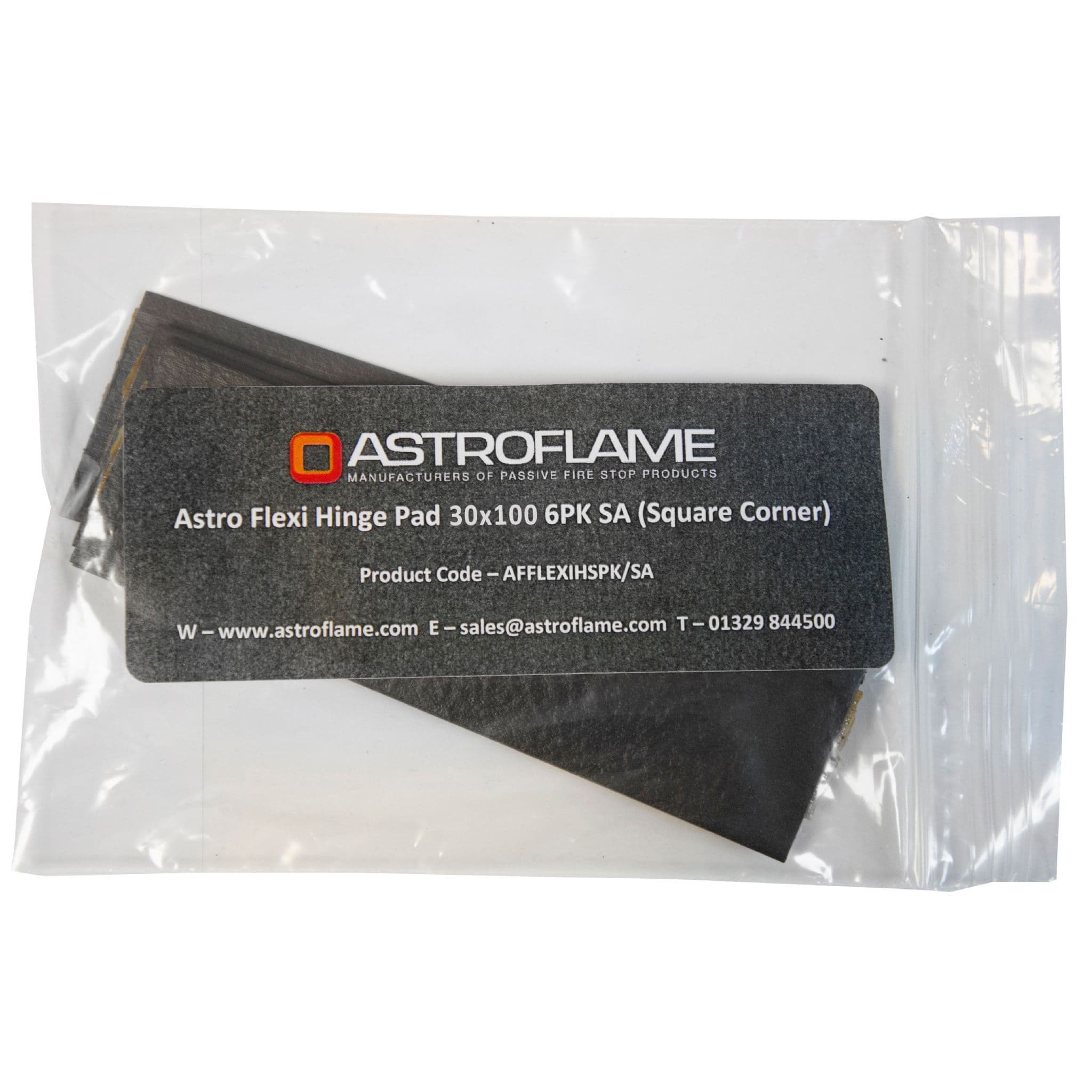

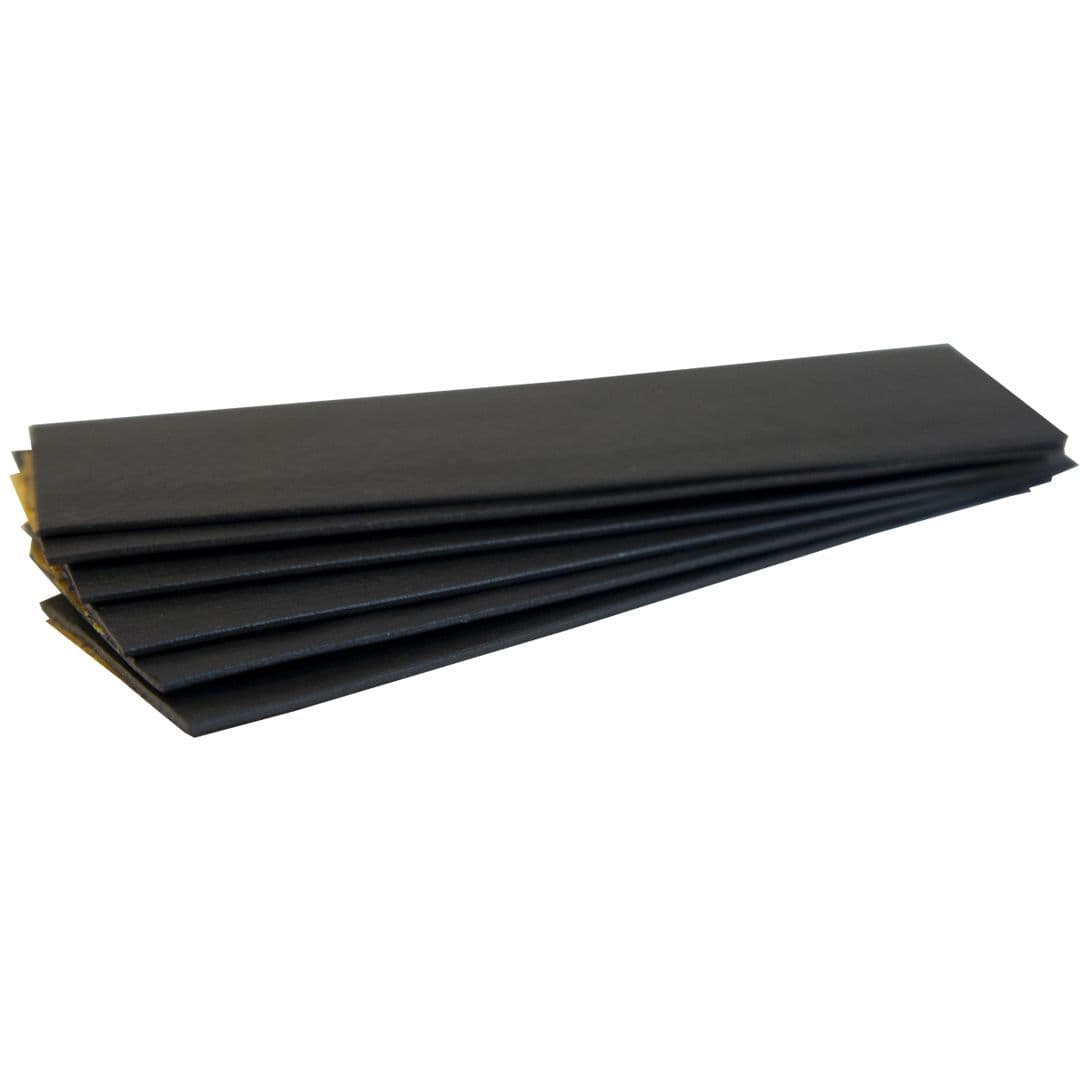

- Pack of 6 self adhesive pads and packaged in poly bagged
- Only 0.8mm thick
- Square intumescent ironmongery material
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email firstname.lastname@example.org
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Each fire door and hardware component will have its own test evidence. It is the responsibility of the purchaser to ensure that the product is fully compliant with the relevant test evidence. For further information contact the technical team on Tel: +(0)1329 841416 or email email@example.com
Download and review any of the following information:
