Intumescent Fire Rated Door Edge Guard Rounded - 44mm - Satin Anodised Aluminium

• Rounded Door Edge Guard.
• Fire tested to BS476 Part: 20 & 22 for 30 minutes and EN 1634 to 30 mins. **Note: To be fitted as per the global assessment. If you wish to receive a copy of this document please contact our sales team.
• Available with a rounded edge and in various widths to suit any door edge.
• New build or refurbishment.
• Ideal for use in Healthcare, Retail, Schools and Commercial/Public areas.
• Single or double door configuration.

With constant trolley and wheelchair traffic it is the leading edge of the door that suffers most from 'porter damage' which not only results in general damage to the door but also possible loss of the fire integrity of the door.

Astroflame have overcome this problem with their range of Fire rated Door Edge Guards which are available in various sizes from 44 - 46mm width and lengths up to 2500mm.

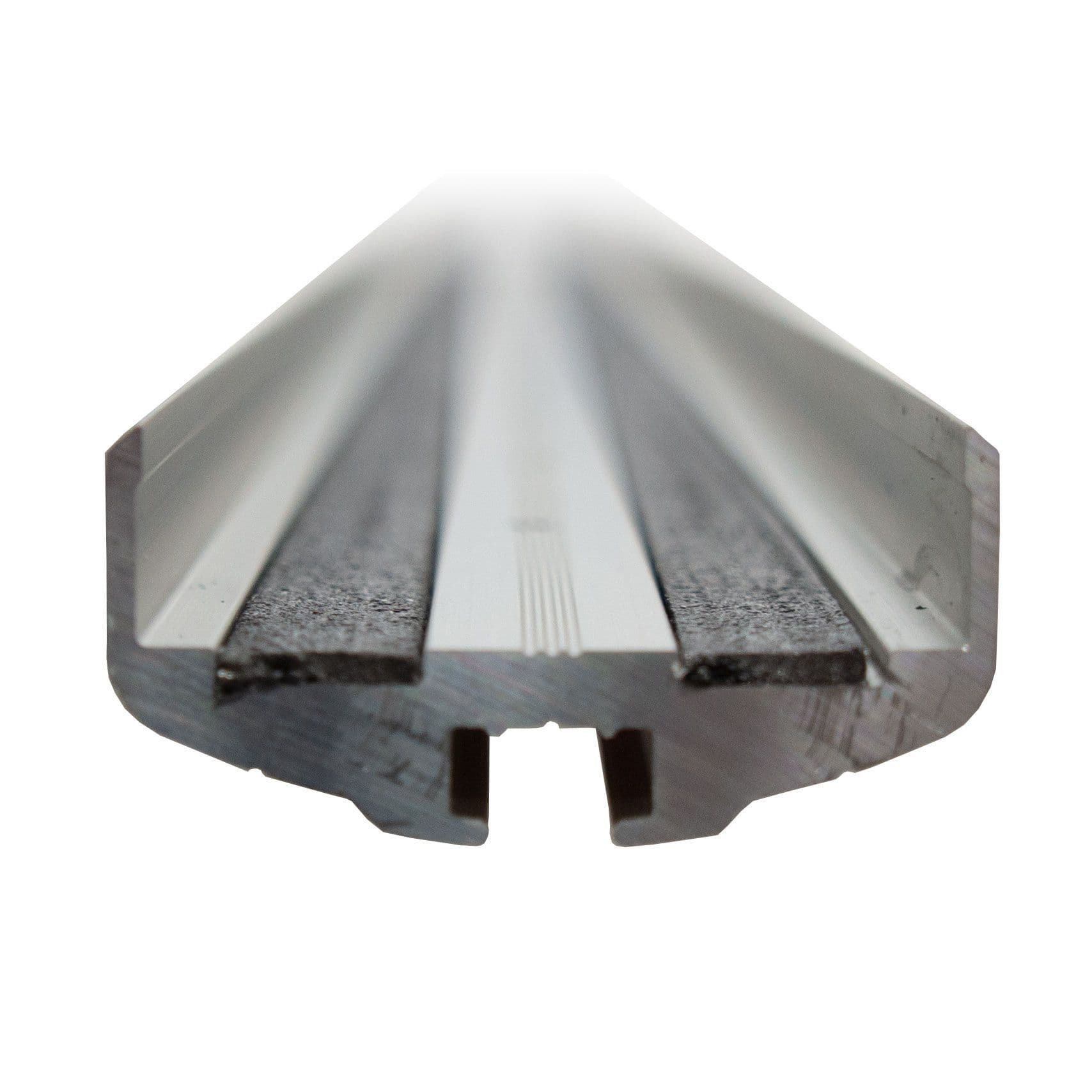

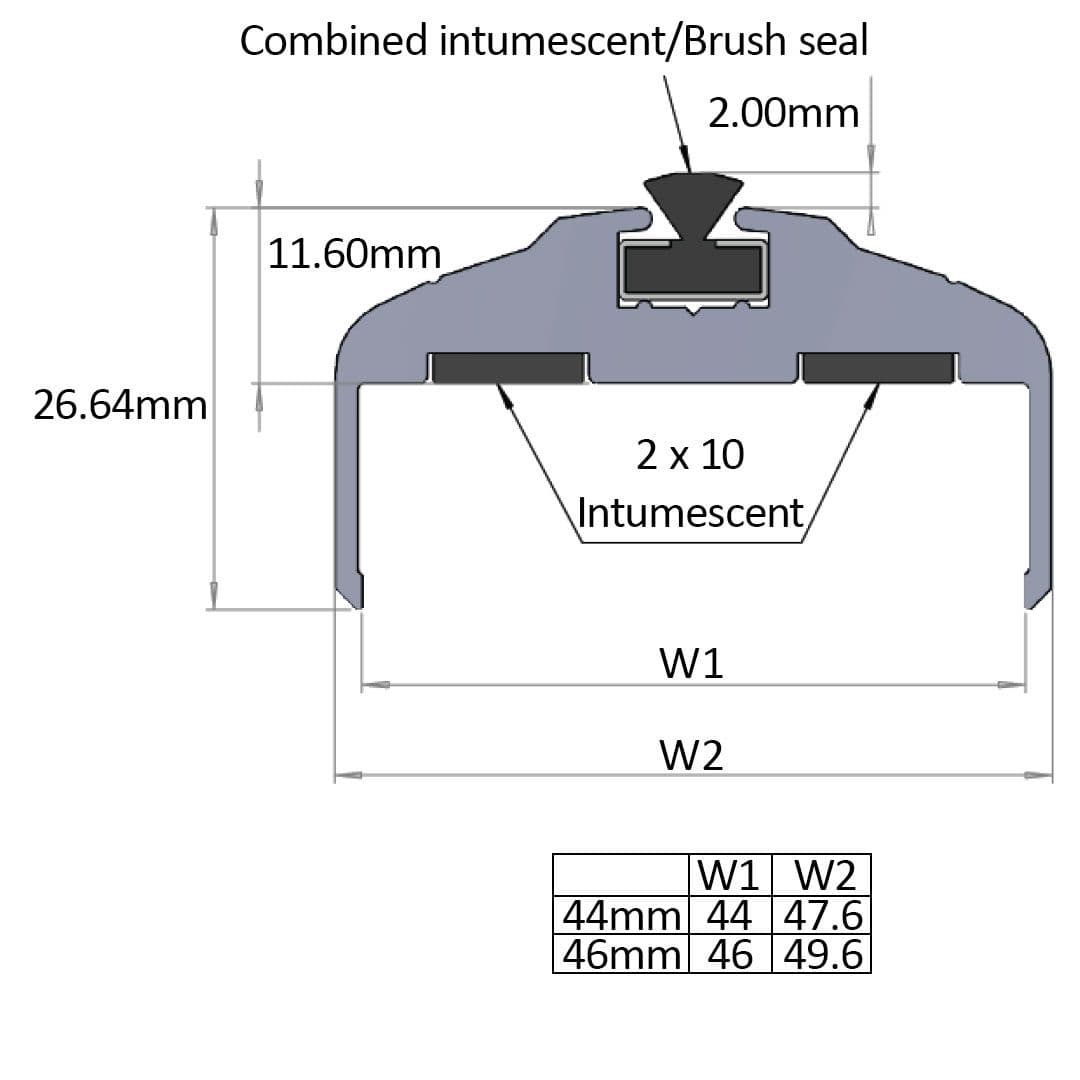

Fitted with intumescent fire and smoke seals which are vandal-resistant yet easy to replace, these aluminium door edge guards are ideal for maintaining fire integrity and can be used on the front and back edges of fire resisting door sets.

Available in aluminium or RAL Colours up to 2500mm long & Widely specified throughout the UK healthcare market.

• Rounded Door Edge Guard
• Satin Anodised Aluminium
• Standard length 2100mm / Size: 44mm
• Please contact us for longer lengths 2500mm or RAL colours

Installation:

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com

Maintenance:

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency:

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

For further information on installation requirements please refer to the door manufacturer data to ensure the compatibility of this product, if in doubt please contact the technical team on: Tel: +(0)1329 841416 or email sales@stormflame.com
