Thermal Fire Pipe Sleeve

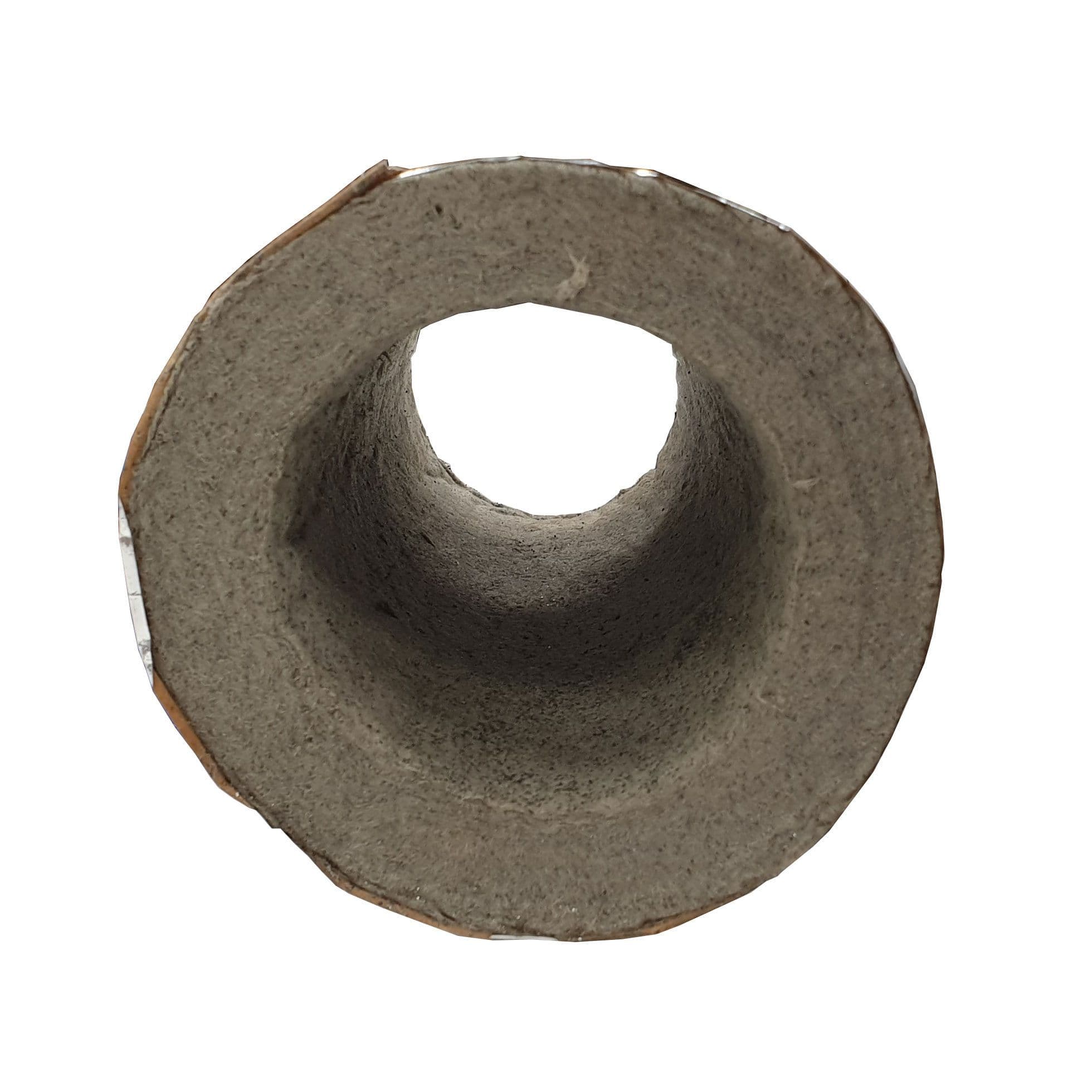

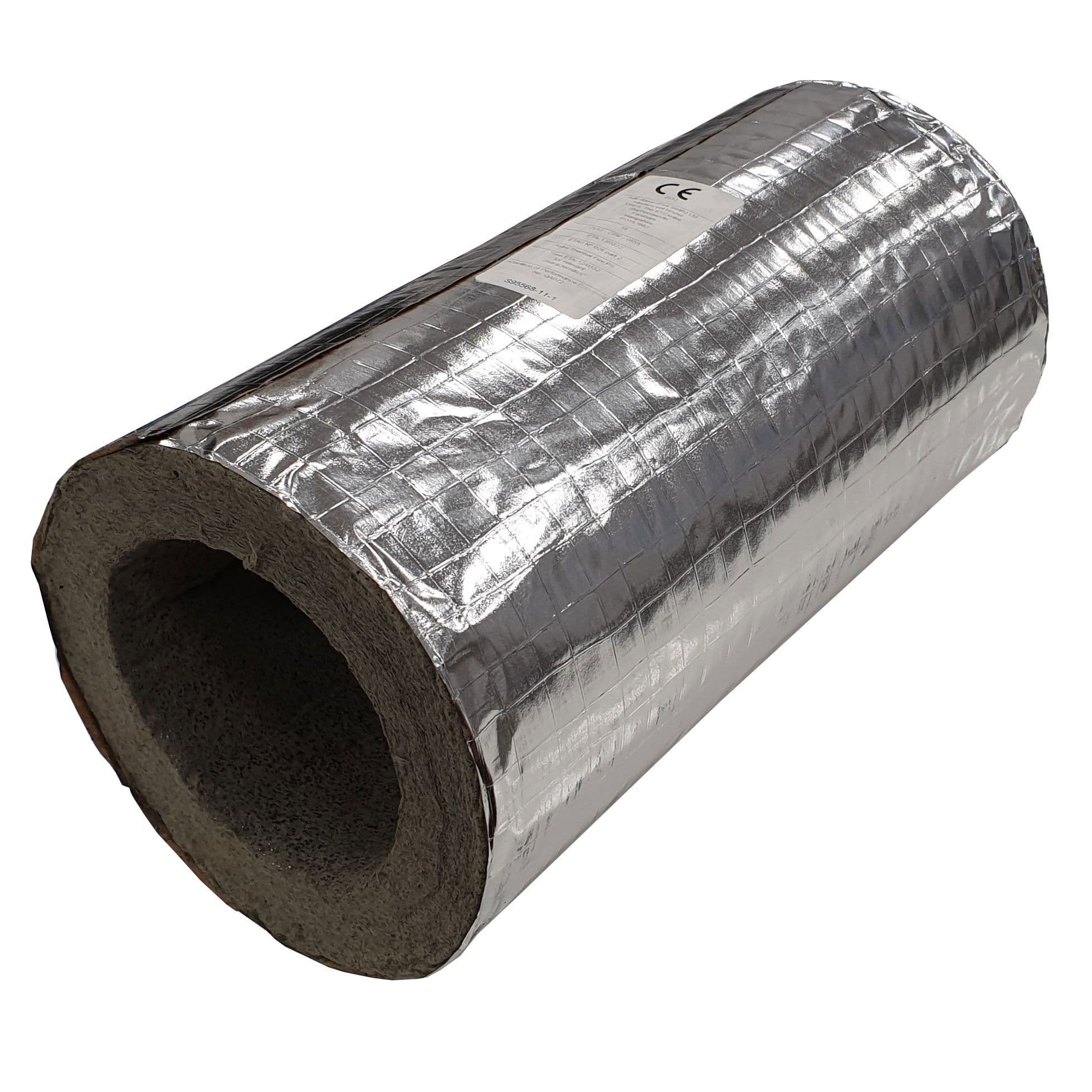

Insulated Thermal Fire Rated Pipe Sleeve 102mm

Thermal Fire Pipe Sleeve 102mm | Shop At Stormflame
Thermal Fire Pipe Sleeve 102mm | Shop At Stormflame
Thermal Fire Pipe Sleeve 102mm | Shop At Stormflame
Thermal Fire Pipe Sleeve 102mm | Shop At Stormflame
Thermal Fire Pipe Sleeve 102mm | Shop At Stormflame

Insulated Thermal Fire Rated Pipe Sleeve 102mm

£31.99 £26.66 (ex. VAT)
Suitable for a wide range of fire walls and floors. | Suitable for a wide range of pipe types | Internal diameter​​​​​​​ size 102mm | Up to 2 Hour Fire Rating | Tested to BS476 | CE Labelled

Quantity:

Key Points:

  • CE Marked.
  • Suitable for fire protecting a wide range of plastic and metal pipes.
  • Tested to BS476.
  • Tested to BS EN 1366-3.
  • Up to 2 Hours Fire Rating.
  • Acoustic Tested to BSEN ISO 140-3 and BSEN ISO 717.
  • Maintains thermal insulation for the pipe.
  • For use through a wide range of fire partition walls and floors.
  • Allows for thermal movement of pipe.
  • No additional metal sleeving or lining out of the partition aperture required.
  • Cost effective, can be cut to length.

Descriptions:

A cost effective product for fire stopping pipe penetrations, eg. plastic and metallic plumbing. Maintains similar thermal and acoustic properties as standard mineral fibre insulation to ensure compliance with water bye laws and building regulations for cold and hot water pipes and heating systems. In a fire the pipe sleeve sleeve expands to fill the available space between the pipe and the penetration.

In the case of a plastic pipe the sleeve will crush and close off the pipe as it forms a solid char, preventing the passage of fire and smoke.

Specification:

  • Length 300mm. Wall thickness 25mm.
  • Internal diameter size 102mm.
  • Tested in plasterboard partition, mineral fibre batt, solid walls and floors. Tested on the following pipe sizes to BS 476 and BS EN 1366-3 for up to 2 hours.

BS 476 for up to 2 hours

Copper 12mm - 160mm 2 hours
Stainless Steel 15mm - 160mm 2 hours
Mild Steel 15mm - 165mm 2 hours
Cast Iron 15mm- 160mm 2 hours
PVC 55mm- 110mm
160mm
2 hours
90 mins
Polybutylene 12mm - 28mm 2 hours
HDPE 15mm - 160mm 2 hours

EN 1366-3

Metal 15mm - 158mm EI 120 Wall
Metal 159mm E120 EI30 Wall
PVC 43mm - 160mm EI 120 min wall & floor
HDPE 40mm - 110mm 120 min wall & floor
HDPE 160mm EI 90 wall / EI 120 floor

All sleeves have been tested with a 25mm nominal wall thickness. Sleeves have been tested cut flush to the wall for metal pipes only and floor for metal and plastic pipes. Sleeves have also been tested in walls, for plastic pipes, leaving 25mm exposed for connection to standard pipe insulation.

The sleeve is simple to install, easy to cut and one sleeve can replace two collars. For metal pipes the sleeve may also be fitted flush to the wall for a clean line solution.

Pipe Material Diameter Blockwork Wall Solid Floor Mineral batt (BS only) Plasterboard Wall
COPPER 15mm - 160mm
CAST IRON 15mm - 160mm
MILD STEEL 15mm - 160mm
STAINLESS STEEL 15mm - 160mm
POLYBUTYLENE 12mm
POLYBUTYLENE 28mm
PVC 55mm - 110mm
PVC 160mm
PVC-U 15mm - 160mm
HDPE 15mm - 160mm * *

* HDPE 160mm limited to EI90

Installation:

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com

Maintenance:

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 – Code of Practice for the Installation and Inspection of Fire Stopping.

Competency:

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

  • Acoustically Tested in plasterboard to BS EN ISO 140-3 and BS EN ISO 717:1977.
  • Includes Uncapped/Uncapped testing (u/u) only on Astro Thermal Fire PS+ please contact us for details on this product.

Please refer to the ETA sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on Tel: +(0)1329 841416 or email sales@stormflame.com

Download and review any of the following information:

Certification/Fire Test Reports:

CE InformationCE Marked Documents
'DoP's are 'Declaration of Performance'
'CoC's are 'Certificate of Constancy of Performance'
'ETA' 'European Technical Assessment Sheet'

  • Product Code:
    AFIPS102/2E
  • MPN:
    AFIPS102/2E
