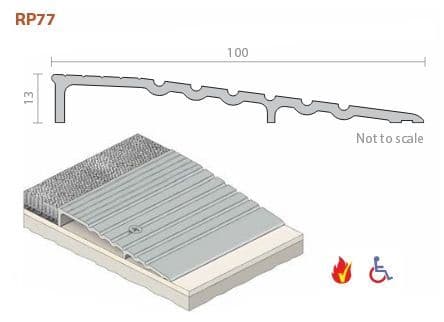

Heavy Duty 'Ramp' Style Plate - RP77 (2250mm)

Key Points:

• Heavy Duty Threshold Plate
• Conforms to UK/EU Approved Document M
• Conforms to Approved Document B (BS 476 Pt. 20 & 22)
• The ribbed extrusions can be positioned back to back to provide a two way threshold ramp.

Description:
A heavy duty threshold ramp with a ribbed design which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b).

Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.

Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways. Can also be used to provide a ramped frame for internal door mats.

For a threshold ramp plate with a longer slope see the Raven RP98 model.

Specification:

• Location: Door sill.
• Finish: Aluminium anodised 25 microns. Satin Clear (Silver).
• Fixing: Zinc plated, cross recess head CSK S.T. screws of the appropriate size and colour are supplied
• Sizes: 2250mm stock lengths.
