Heavy Duty Threshold Plates.
Heavy Duty Threshold Plates. Heavy Duty Threshold Plates.


Heavy Duty Plate for 2-Way Ramp - RP98


Key Points:

  • Raven RP98 Heavy Duty Threshold Plate
  • Two plates can be positioned back-to-back to make a two way ramp
  • Supplied in 1m lengths

Description:
A heavy duty threshold ramp with a ribbed design which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b). Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.

Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways. Can also be used to provide a ramped frame for internal door mats.

Specification:

  • Location: Door sill.
  • Finish: Aluminium anodised 25 microns. Satin Clear (Silver) finish.
  • Fixing: Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Can be fastened with builders adhesive for concealed fixing.

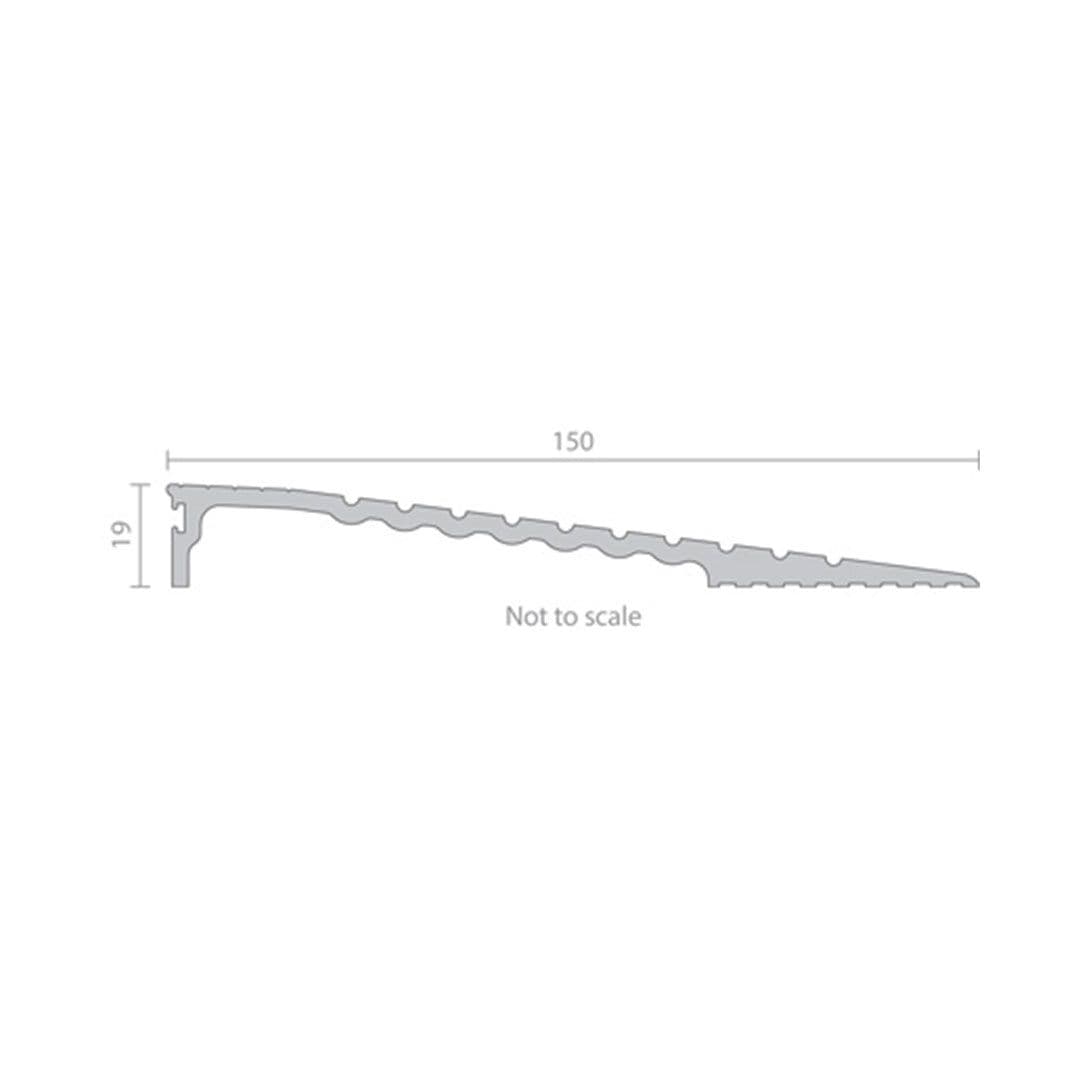

  • Dimensions: max height 19mm, ramp length 150mm. For a shorter ramp length see the Raven RP77 threshold plate.
  • Specify longer length than doorway to allow for neat installation around door frame.

Certification/Fire Test Reports:

  • UL Cert. GVYI.R37913
  • Access & Mobility AUS/NZ: NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2.
  • UK/EU: Approved Document M.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30.Fire Approved
  • Fire Approved when used with a BAL rated door bottom seal in accordance with AS 3959.

MPN: RP98

Our Price: £51.97

Prices include VAT.

Quantity:
