Key Points:
- A heavy duty seal
- Excellent acoustic qualities make it particularly suitable in heavy traffic areas
- A space for low voltage cable management
- mitred or butt jointed for a neat installation
- RP47 has been tested acoustically to BS EN ISO 717.1
Symbol Guide
Description:

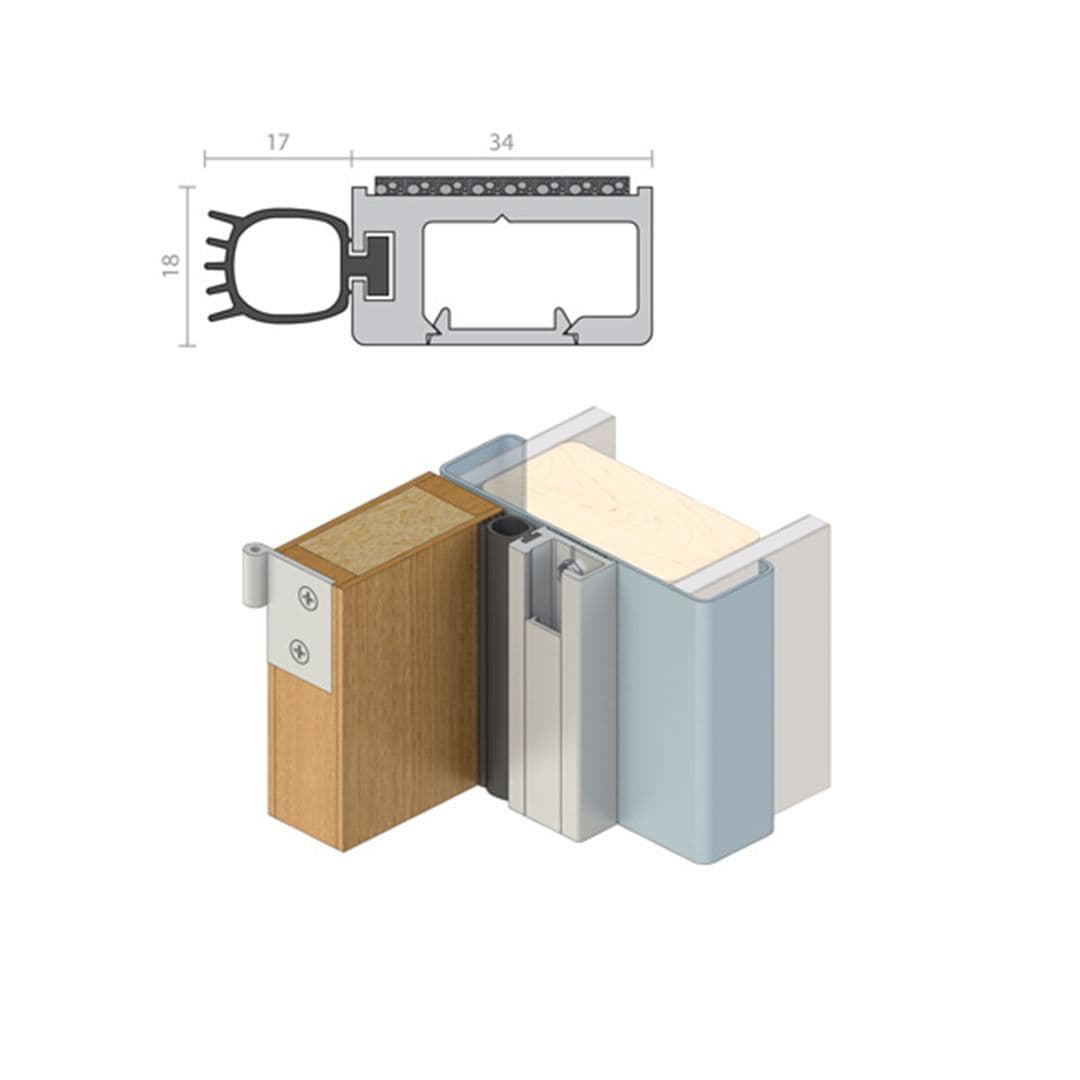

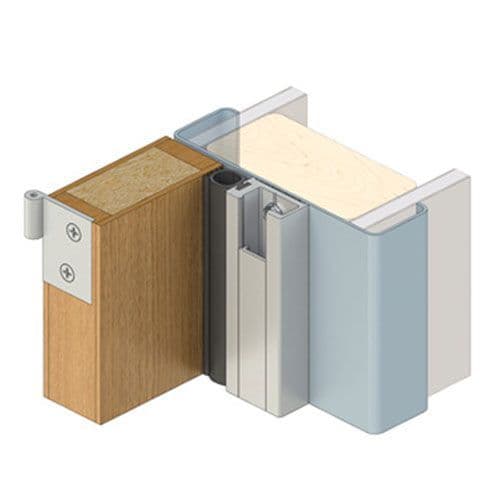

A heavy duty door seal which has been designed to replace the conventional door stop, around the head and jambs of the door frame. Its proven excellent acoustic qualities make it particularly suitable in heavy traffic areas that sustain high abuse, such as hospitals, hotels, airports and prisons

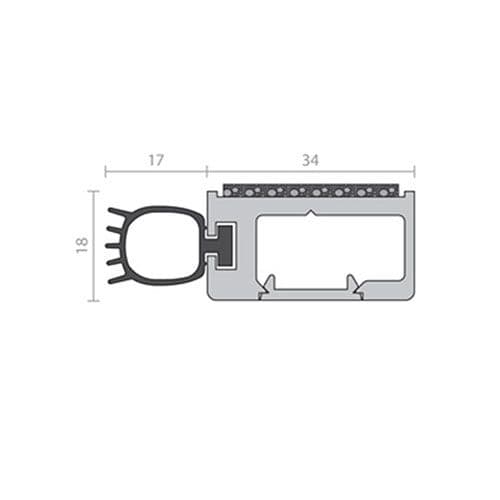

Concealed behind an aluminium cover strip can be found a space for low voltage cable management, along with adjustable fastener slots for achieving perfect fitment. The extrusions of this rugged tamper proof seal can be mitred or butt jointed for ease of installation.
RP47 has been tested acoustically to BS EN ISO 717.1.
Note: If fixed to existing rebated frames of single doors, specify a long backset door latch
Specification:
- Location: Head and jambs of single or double broad butt hinged doors or bulk head applications.
- Min/Max Gap: 0mm to 17mm.
- Fixing Method: Zinc plated, Tek self drilling (metal) of the appropriate size are supplied.
- Finish: Anodised satin Clear.
- Seal Material: T.P.R (black).
- Replacement Seal: RP347Si.
- Singe Door Set: 2 x 2.1m plus 1 x 1m seals
Installation:
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com
Maintenance:
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.
Competency:
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes:
For further information on installation requirements please refer to the door manufacturer data to ensure the compatibility of this product, if in doubt please contact the technical team on: Tel: +(0)1329 841416 or email sales@stormflame.com
