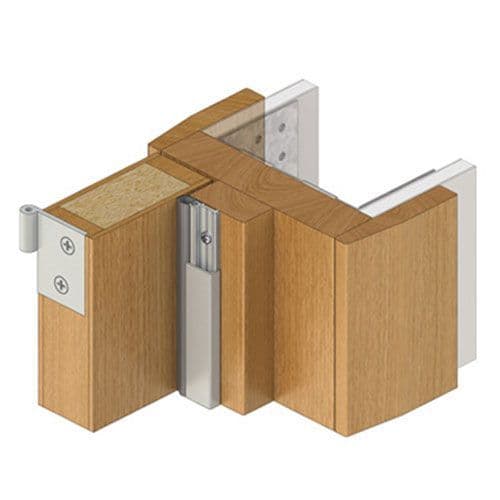

Easy Fit, Tamper Proof seal RP94Si (Double Doorset)

Key Points:

• A weather and acoustic seal suitable for rebated frames
• Easy and quick to install
• Can be used in conjunction with Raven door bottom seals, astragals and threshold plates.
• Symbol Guide

Description:

A weather and acoustic seal suitable for rebated frames. RP94Si is quick and easy to install, either mitred or butt jointed to the head and jambs without removing the door. Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and with a tamper proof cover strip, provides a fit and forget feature.

Note: The tamper proof aluminium cover strip is not recommended for removal once installed , refer RP78Si for this feature.

Specification:

• Location: Head and jambs of single or double broad butt hinged doors.
• Min/Max Gap: 0mm/ 6mm.
• Fixing Method: Zinc plated, cross recess head S.T. screws or the appropriate size are supplied.
• Seal Material: Silicon Rubber (SE) (charcoal).
• Replacement Seal: RP394Si
• Used in conjunction: Raven door bottom seals, astragal and threshold plates.
• Sizes: Available in Double Doorsets 3 x 2.1m

Installation:

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com

Maintenance:

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency:

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

For further information on installation requirements please refer to the door manufacturer data to ensure the compatibility of this product, if in doubt please contact the technical team on: Tel: +(0)1329 841416 or email sales@stormflame.com
