Delta Seals - RP120 (Single Doorset)

Key Points:

• RP120 is a co-extruded PVC acoustic smoke seal
• Can be used in conjunction with Raven door bottom seals and astragals and threshold plates.
•  Symbol Guide

Description:

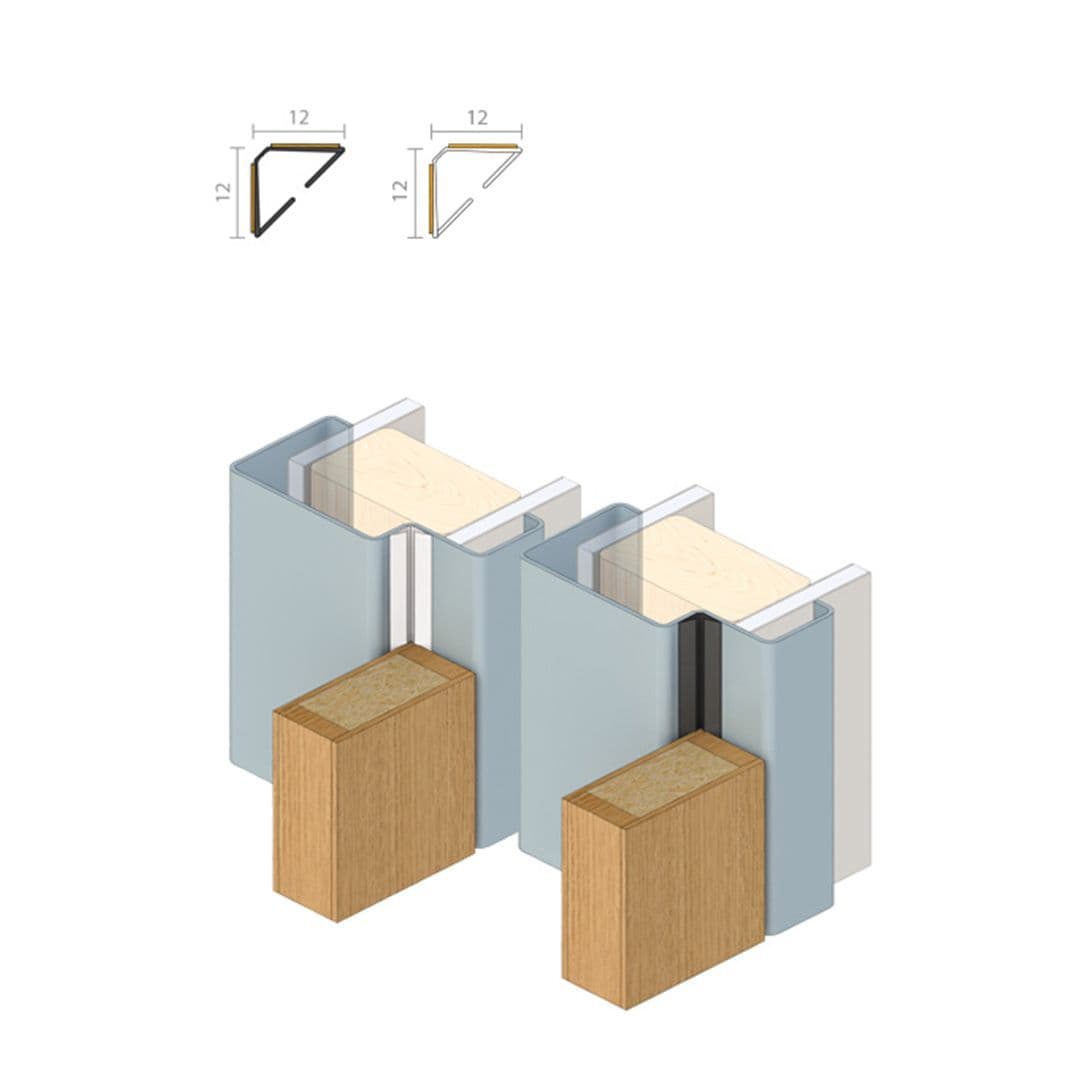

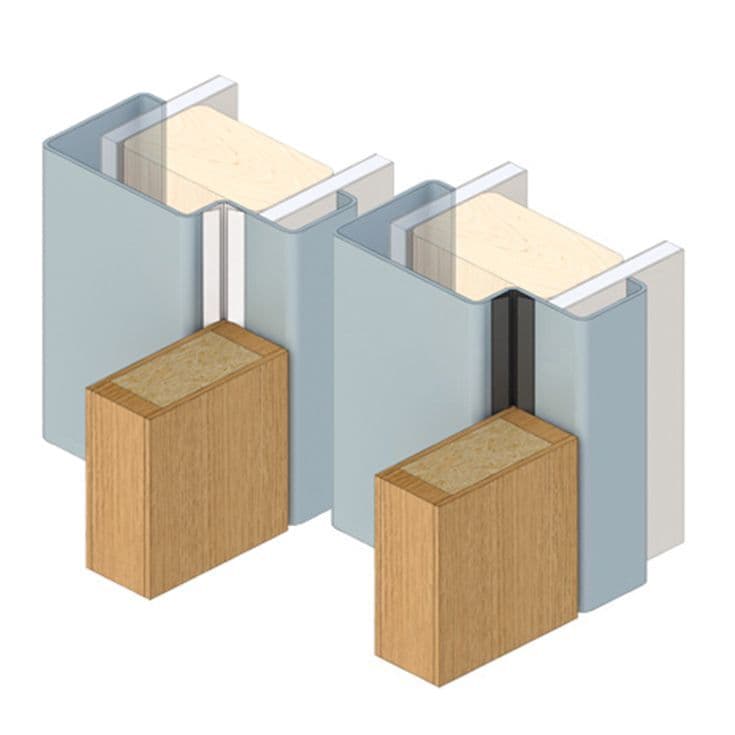

RP120 is a co-extruded PVC acoustic and smoke seals. Discreetly located in the protected corners of rebated timber or steel door and window frames. RP120 are suitable for new and retrofit applications.

Specification:

• Location: Around rebated frames of single and double butt hinged doors and windows.
• Min/Max Gap: 3mm to 5.5mm. Seal Sizes: Single doorsets.
• Seal Material: Rigid and Flexible flame retardant PVC, with an aggressive self adhesive backing tape on both sides of the rigid carrier.
• Standard Finish: Black.
• Used in Conjunction: Raven door bottom seals, threshold plates and astragal seals
• Supplied as single sets 12mm x 12mm

Installation:

We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com

Maintenance:

All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.

Competency:

It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.

Additional Notes:

For further information on installation requirements please refer to the door manufacturer data to ensure the compatibility of this product, if in doubt please contact the technical team on: Tel: +(0)1329 841416 or email sales@stormflame.com
