Key Points:
- 30 & 60 minute fire tested to BS-EN 1634-1 & BS476-22.
- Tested in full size single & double doorsets, not linear gaps.
- No additional mastics or sealants required.
- Acoustically tested to full doorset up to 43dB*.
- Tested in masonry, timber and steel stud partitionings.
- Tested with softwood, MDF & hardwood frame sections.
- Tested in a retro-fit scenario to allow use for rectification.
- Now tested with gaps 3 : 30mm.
- Blue 60 Foam must be used in conjunction Blue60 packers available in 1,3 & 5mm or Blue 60 Timberex Wedgers.
Description:
Blue 60 is a specially formulated, self-expanding polyurethane foam designed for sealing timber doorsets. When paired with Blue 60 fire-rated packers or the Blue 60 Timberex wedge system, it delivers up to 60 minutes of proven fire protection. Helping you achieve compliance quickly and with confidence.
The most tested foam of its kind, Blue 60 has passed every single test to BS 476 Part 22 and BS EN 1634-1 standards. Covering every combination of wall and frame type, both 30 and 60 minute timber fire doors and single or double sets. It’s a system making it the perfect choice for contractors, property owners or professionals that want to protect timber doorsets.
Blue 60 expands to form a durable, smoke and gas tight seal, meaning no extra mastics or sealants are needed. Once cured, it won’t shrink, ensuring lifelong integrity. Installation is simple, fast and more cost-effective helping you create a building that’s safe, secure and up to standard.
In addition to fire and smoke resistance, Blue 60 provides excellent acoustic insulation, reducing sound transmission by up to 43 dB Rw* perfect for creating quiet, secure environments. The foam is CFC and H-CFC-free using propellants that are harmless to the ozone layer.
Blue 60 Fire-Rated Packers
Each semi-rigid packer is colour coded by thickness 1 mm, 3 mm, and 5 mm for easy identification. They can be trimmed and shaped for a precise fit, ensuring consistent gap management and system performance. Designed to work seamlessly with Blue 60 foam.

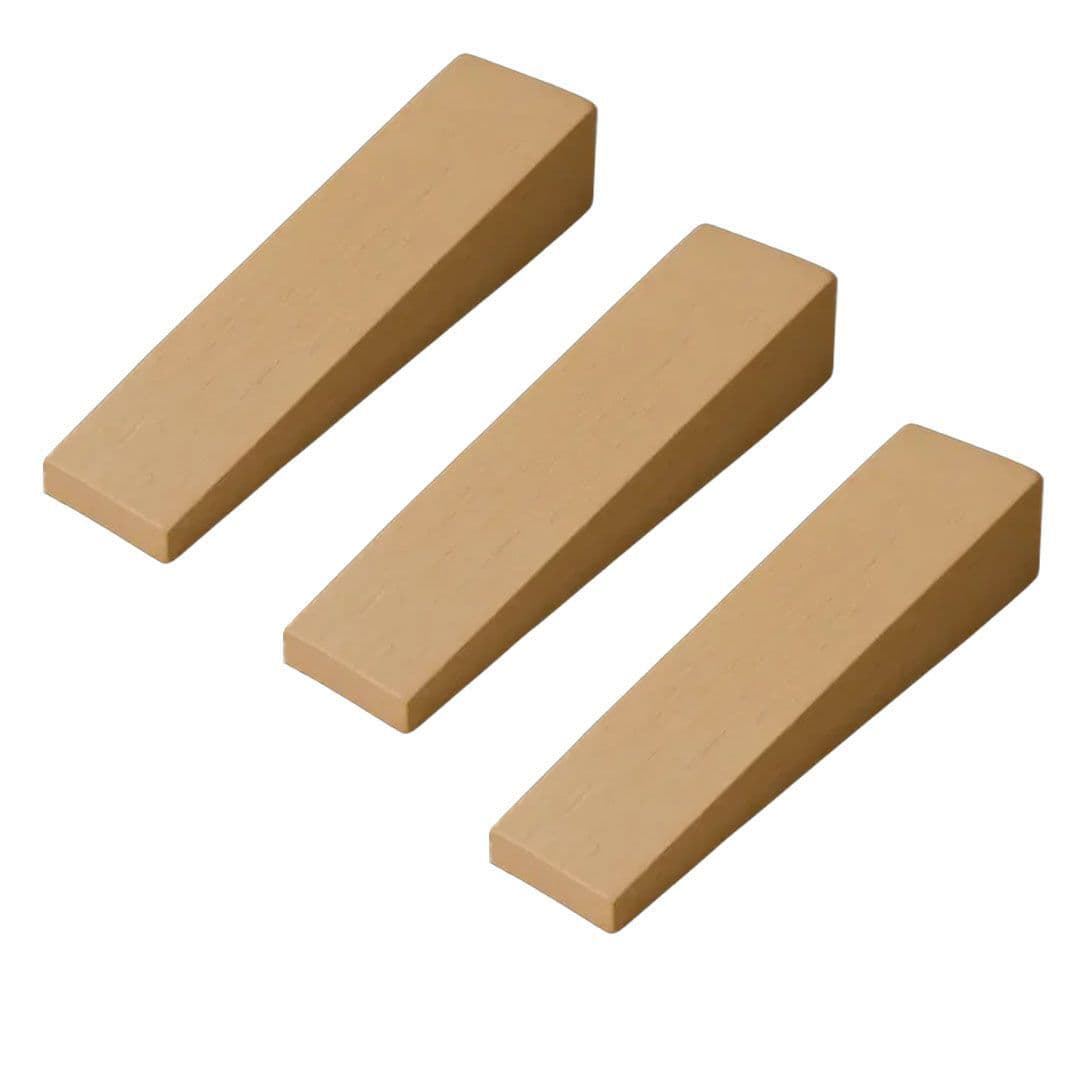

Blue 60 Timberex Wedges
The Timberex wedges are part of the Blue 60 installation system. Their wedge-shaped design assists installers when dealing with difficult door gap issues, whilst still offering the same rigidity as conventional Blue 60 packers at the fixing positions. When used with Blue 60 foam they provide up to 60 minutes fire resistance and prevent smoke leakage. The Blue 60 Timberex wedge can be cut, shaped, painted or finished with mastic for a seamless finish.
Used by many of the UK’s leading developers, the Blue 60 system is a proven, environmentally responsible and cost effective solution for fire rated timber door installations.
Properties:
- According to BS EN 1634-1 & BS 476 Part 22 fire retardant up to 60 mins - see table enclosed.
- Efficient seal against smoke and gas.
- Does not contain CFC's and H-CFC's.
- Excellent adhesion & filling capacity.
- Excellent mounting capacity and stability.
- High yield up to 45 litres depending on temperature and humidity.
- Excellent adhesion on most substrates (except Teflon, PE and PP).
- High filling capacity.
- High thermal & acoustical insulation value.
- After cured, it can be painted, cut , trimmed.
- No shrinkage.
- Mould and water resistant.
- Temperature resistance -40°C to +90°C.
Technical Properties:
- Base Polyurethane prepolymer
- Curing System Moisture.
- Skin Formation Approx. 10 minutes.
- Fully fire rated after full curing 24:48hrs depending on conditions
- Specific gravity 23+ kg/m3.
- Temperature resistance -40°C until +90°C (cured).
- Fire properties BI (DIN 4102).
Performance:
| Wall Construction |
Frame Material |
Frame Depth |
Minimum Gap |
Maximum Gap |
Tested to |
Timber Stud
Steel Stud
Brickwork |
MDF Softwood minimum density
450 kg/m3 |
Minimum Depth 80mm |
No minimum gap providing the frame width is fully filled |
30mm |
EN 1634-1
BS476 PT:22 |
| Wall Construction |
Frame Material |
Frame Depth |
Minimum Gap |
Maximum Gap |
Tested to |
Timber Stud
Steel Stud
Brickwork |
MDF Softwood minimum density
610 kg/m3 |
Minimum Depth 100mm |
No minimum gap providing the frame width is fully filled |
30mm |
EN 1634-1
BS476 PT:22 |
Blue 60 foam has a usable life in the can of 2 years from the manufactured date shown on the bottom of the can, if unopened, however some diminishing yield from the can may become apparent after 12 months if not stored in a cool dry storage place at temperatures between +5°C and +25°C.
Specification:
- 750ml Gun Grade (Sold as a single item)
- Blue 60 Foam must be used in conjunction Blue 60 packers available in 1,3 & 5mm or Blue 60 Timberex Wedgers (Sold in packs of 100).
Installation:
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@stormflame.com
Maintenance:
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.
Competency:
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes:
* The sound reduction rating will vary depending on the door density and any additional threshold & perimeter seals used in conjunction with this product, contact Stormflame for confirmation before specifying.
Each fire door will have its own test evidence from the door manufacturer. It is the responsibility of the purchaser to ensure that the seals are fully compliant with the relevant test evidence, if in doubt please contact the technical team on Tel: +(0)1329 841416 or email sales@stormflame.com
Download and review any of the following information:
×
